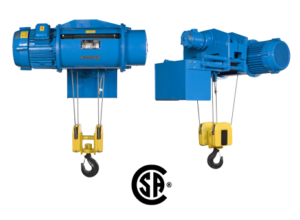

Low Headroom Hoists

Low Headroom Hoists


  • Modular, rugged construction for easy service and maintenance
  • Meets or exceeds CSA, FEM and DIN standards
  • Compact square series design
  • Proven electric motor with conical rotor and built-in brake with asbestos-free lining
  • Gear unit with planetary gear drive in oil bath
  • Upper and lower limit switch
  • Mode of protection IP54 – protected against dust and splashing water
  • Supply voltages 230V, 460V and 575V AC-60 Hz and 380V AC-50 Hz

Additional options available:

  • Overload protection device BOT
  • Hoist motor protection – built-in thermal protection sensors
  • True vertical lift – 4/2 Reeving
  • Control equipment “Telemecanique”
  • Hoists for cold climatic zones – air temperature from -40C to +40C, humidity 30% to 95%
  • Additional electric brake
Made in Canada
2-year warranty
Meets and exceeds ASME B30.7 standard
Custom manufacturing
Testing and inspection certificate included
